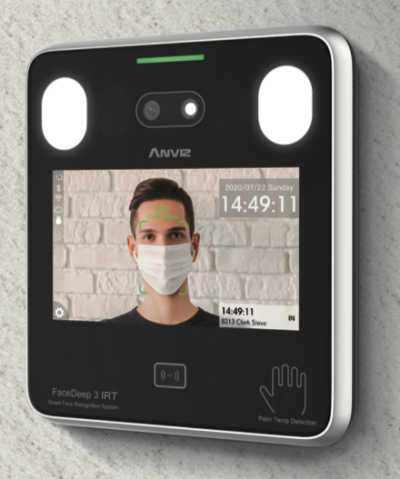

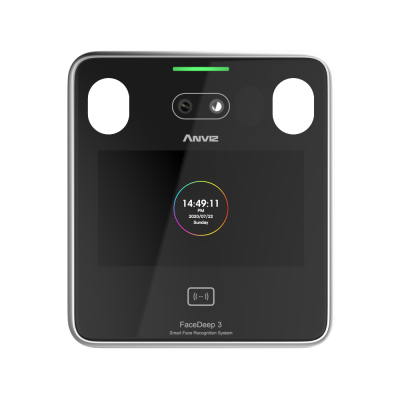

Anviz FaceDeep 3 IRT Smart Face Recognition Terminal with Body Temperature Detection

Pre Order - 4 to 8 Weeks Lead Time

FaceDeep 3 series are the new Al-based face recognition terminal equipped with a dual-core based Linux based CPU and the latest BioNANO® deep learning algorithm. It supports up to 10,000 dynamic face database and rapidly recognize users within 2M (6.5 ft) in less than 0.3 seconds and customizes alerts and a variety of reporting for no-mask wearing.

Powered by Independent AI Engine and BioNANO Deep Learning Algorithm

  • GOPS NPU 600
  • Dual-Core 1.0GHz
  • Face Recognition Speed <0.3 S
Brand:
Anviz

S$600.00 per unit

Available on backorder

Request for Quote
SKU: ANVIZ-FD-3IRT Categories: , , , ,
Overview

Features
  • Dual camera for liveness face recognition
  • Mask or no mask: AI deep learning mask-wearing detection
  • High-throughput screening (HTS), up to 50 people per minute
Body Temperature Detection (IRT Model only)

  • High Accuracy at Deviation <±0.3℃ (0.54℉)
  • Temperature Range 23℃~46℃ (73℉~114℉)
  • Temperature Distance 10~20 mm ( 0.39~0.79”)
System Operation Scenario

Facial recognition, body temperature detection and mask-wearing checked by the FaceDeep 3 all at once. After the scan, the information redirects to the administration via both CrossChex App and CrossChex Web software.

Ergonomic Design for Convenience

Flexible installation to support the extended height range [ 120 – 190 cm（47.24 – 74.80”)] for face recognition.

System Configuration Dynamic

Flexible communication for WiFi or Lan. Convenient management for Web-server and PC software.



General Specification
  • Identification Mode: Face, Card, ID+Password
  • Face Recognition Distance: 0.5 ~ 1.5m ( 19.69 ~ 59.06”)
  • Face Recognition Speed: <0.3 S
  • RFID Technology: 125KHz EM
Downloads

Brochure



Specifications
General
Identification Mode Face, Card, ID+Password
Face Recognition Distance 0.5 ~ 1.5m ( 19.69 ~ 59.06” )
Face Recognition Speed <0.3 S
RFID Technology 125KHz EM

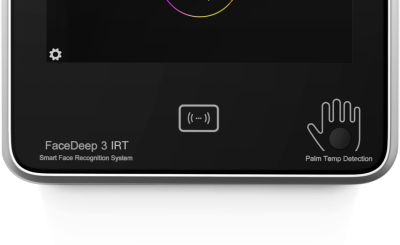

IRT (Palm Temperature Detection)
Detection Distance 10~20mm( 0.39~0.79” )
Temperature Range 23°C~46°C ( 73°F~114°F )
Temperature Accuracy ±0.3°C( 0.54°F )
Capacity
Max Users 6,000
Max Cards 6
Max Logs 100,000
Function
Time Attendance Mode 8
Group, Time Zone 16 Access Groups, 32 Time Zone
WebServer √
Record Auto Enquiry √
Voice Prompt √
Clock Bell √
Multiple Language √
Hardware
CPU Dual 1.0 GHz
Camera Dual Camera ( VIS & NIR )
Scanning Area Horrizontal：±20°　Vertical：±20°
Display 5″ TFT Touch Screen Resolution 640*480
Smart LED Support
Dimensions (W x H x D) 14.6*16.5*3.4 cm 5.75*6.50*1.34”
Working Temperature -5℃~60℃ 23℉~160℉
Humidity 0% to 95%
Power Input DC 12V 2A
Interface
TCP/IP √
RS485 √
WiFi √
Relay 1 Relay Out
Temper Alarm √
Weigand 1 In / 1 Out
Door Contact √
Software Compatibility
CrossChex Standard √
CrossChex Cloud √
Applications
