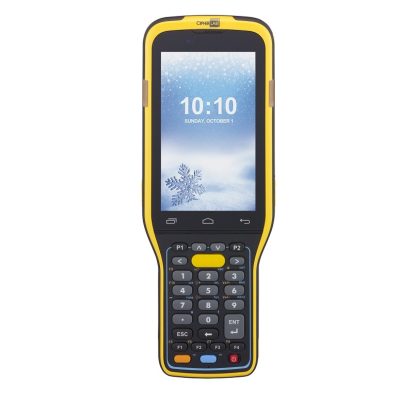

Cipherlab RK95 Industrial Mobile Computer

Cipherlab
Availability:

Pre Order - 6 to 8 Weeks Lead Time


CipherLab’s RK95 is a powerful handheld terminal that steps up the data collection game in the warehouse environments. Running on the latest Android operating system and today’s most powerful processor, the RK95 also comes with Google enterprise-oriented certifications to ensure the device’s productivity stays efficient for now and the future. Crafted in excellent reading capability, wireless connection, industrial ruggedness, user interface and power consumption, the RK95 is surely an investment that is smart and cost effective for your business.

  • OS: Android 9 (GMS, AER certified with one later version upgradeable capability)
  • Versatile reader options of laser, 2D imager, mid-range 2D imager, and extended-range 2D imager fulfill different user demands in reading distance. Maximum long distance barcode reading over 21 metres.
  • Visible LED indicators represent scanning result status, wireless connection, charging level and more.
  • 4.3” touch display ensures readability and future adoption of touch-based applications.
  • 2×2 MU-MIMO technology with increased data capacity and transmission speed.
  • Lightweight and pistol designs to guarantee all-day comfortability.
  • Comes with temperature sensor and heater control software allows user to automatically turn on/off heater based on surrounding
    environment. For example, set to turn on heater under -10ºC and turn off above 20ºC.

Overview
Standard

Being the next generation of 9700 series, RK95 is surely capable of performance for new and legacy users. Modernized terminal emulation and physical keypad options make data collection easy on either “green screen” system or touch-based operation. Superior Wi-Fi technology of coverage and speed can handle big data transmission without interferences and drop transactions. Lightweight, yet strong resistance to water, dust, and accidental drops, RK95 is easy to carry throughout the workday. It also comes with hot-swappable battery to extend its working hours for any overtime warehouse operations. RK95’s versatile reader options give user long reading range of over 20 m while keeping the benefits of modularity for easy field replacements and on-site services.



Cold Storage

Extending the RK95 to cold storage or freezer environments, CipherLab has developed the cold storage model with working temperature downs to -30 degrees Celsius without condensation. Heaters are embedded to ensure fogging-free display screens and frost-free scanning to maintain working efficiency. The RK95 also comes with control software to allow automatically turn on/off heater based upon user demands. Moreover, it’s crafted with ice-resistant materials to prevent potential damages caused by low temperature and dedicated freezer battery is equipped to ensure sufficient working hours.



Industry Use
  • Transportation
  • Distribution Cente
  • Manufacturing
  • Cold Storage
  • Direct Store Delivery
  • Field Mobility
Download

Brochure

Specifications

Operating System

  • Android 9 (GMS, AER certified with one later version upgradeable capability)

CPU

  • Octa-core over 2.2 GHz

Memory

  • Micro SD Slot With SDHC (up to 32 GB) and SDXC (up to 2TB) Support

Expansion

  • Micro SD Slot With SDHC (up to 32 GB) and SDXC (up to 2TB) Support

Operating Power

  • Standard: Rechargeable 3.7V, 3000 mAh / 6000 mAh Li-ion Battery
    Cold Storage: Rechargeable 3.7V 5500 mAh Li-ion Battery

Working Hours

  • Standard: Min. 8 working hours (3000 mAh), Min. 12 working hours (6000 mAh)
    Cold Storage: Min. 5 working hours at -30oC

Wireless Communication

  • WLAN: IEEE 802.11 a/b/g/n/ac/e/d/h/i/r/k/v/w, IPv4, IPv6, 2×2 MU-MIMO
    WPAN: Class 2 Bluetooth® V5.0 with BR/EDR and Low Energy (BLE) Support

Barcode Scanning

  • Standard: Laser / 2D Imager/ Mid-Range 2D Imager / Extended-Range 2D imager
    Cold Storage: 2D Imager/ Mid-Range 2D Imager / Extended-Range 2D imager

Camera (Optional)

  • Autofocus 13 Megapixels with LED flash

Display

  • 4.3″ WVGA color display, Capacity Touch supports bare/wet/gloved finger and stylus inputs, Corning Gorilla Glass

Keypad

  • 28-Key Numeric, 38-Key Numeric/Function keypads, 52-Key Alphanumeric keypads, Terminal Emulation keypads (TN5250, TN3270 and VT) , with LED backlight

Size

  • 216 mm x 80 mm x 30 mm

Weight

  • 400 g (3000 mAh) / 445 g (6000 mAh), with 2D imager
  • 435 g (3000 mAh) / 480 g (6000 mAh), with Extended-Range 2D imager
  • Cold Storage: 485 g, with 2D imager/ 520 g, with Extended-Range 2D imager

Operating Temperature

  • Standard: -20°C to 50°C / -4°F to 122°F
  • Cold Storage: -30°C to 50°C/-22°F to 122°F

Impact Resistance

  • IP65 / 1000 (1 m) Tumbles
    Standard: 1.8 m / 2.4 m with Rubber Boot, multiple drops onto concrete (MIL-STD-810G), crossing operating temperature
  • Cold Storage: 1.5 m multiple drops onto concrete (MIL-STD-810G), crossing operating temperature down to -30 degrees Celsius
