Confidex Silverline Micro II RFID On-Metal Labels (For Zebra) – 600 pcs


The Confidex Silverline Micro II™ RFID Tag is a versatile all-surface RFID label for securing IT and enterprise assets, valuable items, tools, and much more.

  • Washable.
  • IP 68 rated.
  • Versatile UHF RFID label.
  • Read ranges up to 3.5 (12 ft) on-metal, 1.5 m (5 ft) on plastics, and 2 m (7 ft) on liquids.
  • Printable, metal-mount label tag.
  • Can be applied on a curved surface.
  • Ideal applications include manufacturing, automotive, ICT and electronics, construction and mining, logistics and RTI operation, and healthcare.

Download Brochure

Price is for 600 pieces

S$364.00

The Confidex Silverline Micro II™ improves on its predecessor’s performance with a new IC, higher read range on-metal up to 2.3x farther at 3.5 m (12 ft), all while maintaining its small footprint and industry-leading printing compliancy.

The improved Confidex Silverline Micro II™ expands on the capabilities of the original Confidex Silverline Micro™, offering an increased read range on-metal 2.3x farther than its predecessor. The new Confidex Silver Micro II™ has been completely redesigned with an increased foam thickness, a newer, more sensitive IC, and the addition of regional versions (FCC & ETSI).

Additionally, the Silverline Micro II™ offers increased read performance on off-metal surfaces such as plastics and liquids, with read ranges up to 1.5 m (5 ft) and 2 m (7 ft) respectively. The Confidex Silverline Micro II™ remains the ideal tag for applications where the suitable label size is limited, such as asset tracking of tools, metal parts, fixtures in manufacturing, or the tracking of wheelchairs, oxygen canisters, IV pumps, and more in healthcare.

The Confidex Silverline family is designed and verified to work with the Custom Zebra ZT410 RFID Silverline and ZT411 On Metal printers. Other Zebra printers are not recommended or supported.



ELECTRICAL SPECIFICATIONS
Device Type Class 1 Generation 2 passive UHF RFID transponder
Air Interface Protocol EPCGlobal Class1 Gen2 ISO 18000-6C
Operational Frequency ETSI 865 – 869 MHz
FCC 902 – 928 MHz
IC Type Impinj Monza R6-P
Memory Configuration EPC 96/128 bit; User 32/64 bit; TID 96 bit
EPC Memory Content Uniqure random 96 bit EPC in every Label
Read Range (2W ERP) ETSI and FCC
On metal up to 3,5 m / 12 ft
On plastic up to 1,5 m / 5 ft
On liquid up to 2 m / 7 ft
Applicable Surface Materials Optimised for metal but works on any surface
Attachment on curved surface Label can be attached to a curved surface
MECHANICAL SPECIFICATIONS
Label Surface Printable white PET, Zebra 5095 resin ribbon
recommended
Background Adhesive High performance acrylic adhesive optimized for metal
and painted metal surfaces
Weight 0,3g

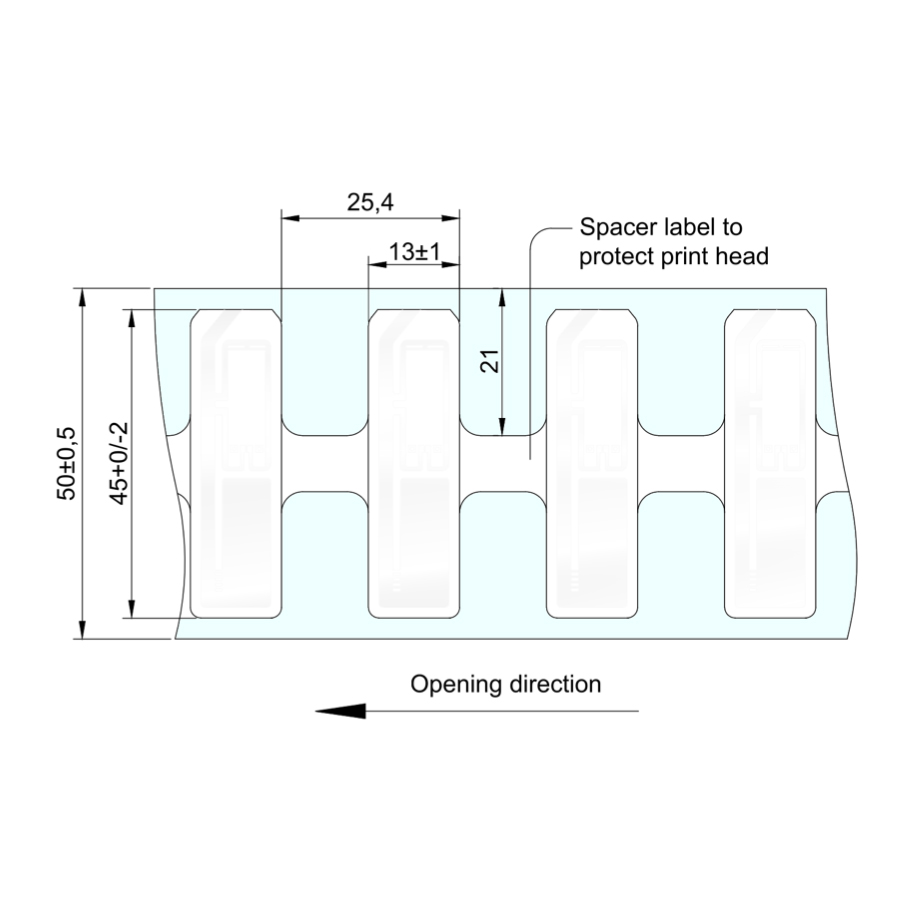

Delivery Format 600 pcs good labels on reel, bad ones marked with “XXX” printing
Pitch on rell 45,4mm / 1″
Reel core inner diameter 76mm / 3″
Tag DImensions 45x13x1,3mm / 1.77×0.51×0.05”
ENVIRONMENTAL RESISTANCE
Operating Temperature -35°C to +85°C / -31°F to +185°F
Peak Temperature +110°C / 230°F for 10min
Water Resistance IP68, tested for 5 hours in 1m deep water
Washing Resistance Tolerates industrial washing with standard solvents.
Washing process should be tested in final application.
Chemical Resistance No physical or performance changes in:

– 168h Sulfuric acid (10%, pH 2) exposure

– 168h Motor oil exposure

– 168h Salt water (salinity 10%) exposure

– 30min NaOH (10%, pH 13) exposure

– Wiping with acetone

Storage Condition 1 year in +20°C / 50% RH
