Name: Zebra ZT610 Industrial Label Printer
Availability: PreOrder

Zebra ZT610 Industrial Label Printer

The Zebra ZT610 Industrial Label Printer delivers high-performance, precision printing for demanding industrial environments.

Features:

✔ High-Resolution Printing: Up to 600 dpi for sharp barcodes and graphics.
✔ Fast Print Speed: Prints up to 14 inches per second for high-volume tasks.
✔ Rugged Durability: All-metal construction for 24/7 industrial use.
✔ User-Friendly Interface: Full-color LCD display with intuitive controls.
✔ Smart Connectivity: Supports USB, Ethernet, Serial, Bluetooth, and Zebra Link-OS for remote management.

Ideal for manufacturing, logistics, and healthcare applications

Download Brochure

Brand:

Description

The Zebra ZT610 Industrial Label Printer is a high-performance, ultra-durable printing solution designed for mission-critical operations in manufacturing, logistics, and healthcare. Combining advanced technology with industrial-grade durability, the ZT610 ensures precision printing, high-volume output, and seamless integration into enterprise environments.

Standard Features:

Print Methods: Thermal transfer and direct thermal printing
Construction: Metal frame and bi-fold metal media cover with enlarged clear viewing window

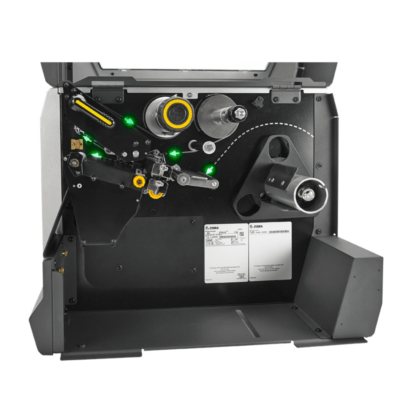

Side-loading supplies path for simplified media and ribbon loading
Thin film printhead with E3™ Element Energy™ Equalizer for superior print quality
Communications: USB 2.0, high-speed, RS-232 Serial, Gigabit Ethernet, Bluetooth 4.0

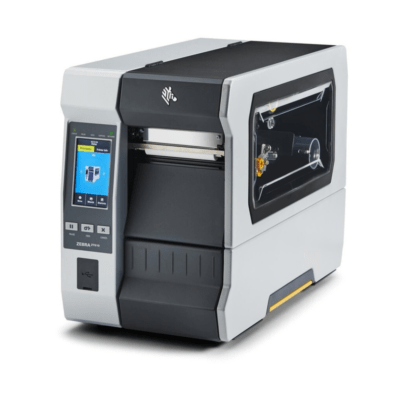

Highly visible color display that turns red when the printer is in an error state allows operators to determine printer status from a distance
Simplified icon menu navigation system categorizes settings into logical groups of functions

With intelligent troubleshooting, predictive maintenance, and superior print accuracy, the Zebra ZT610 delivers unmatched reliability and efficiency for high-demand industrial printing applications.

Specifications

Feature

Maximum Print Width	ZT610: 4.09″/104 mm
Maximum Print Speed	ZT610: 14 ips/356 mm per second at 203 dpi 12 ips/305 mm per second at 300 dpi 6 ips/152 mm per second at 600 dpi
Print Resolution (dpi)	203 dpi/8 dots per mm 300 dpi/12 dots per mm (optional) 600 dpi/24 dots per mm (optional for ZT610 only)

Standard Features

Print Methods: Thermal transfer and direct thermal printing
Construction: Metal frame and bi-fold metal media cover with enlarged clear viewing window
Side-loading supplies path for simplified media and ribbon loading
Thin film printhead with E3™ Element Energy™ Equalizer for superior print quality
Communications: USB 2.0, high-speed, RS-232 Serial, Gigabit Ethernet, Bluetooth 4.0
Highly visible color display that turns red when the printer is in an error state allows operators to determine printer status from a distance
Simplified icon menu navigation system categorizes settings into logical groups of functions

Printer Specifications

Operating System	Link-OS®
Resolution	203 dpi/8 dots per mm 300 dpi/12 dots per mm (optional) 600 dpi/24 dots per mm (optional for ZT610 only)
Memory	1 GB RAM memory 2 GB on-board linear Flash memory
Maximum Print Width	ZT610: 4.09″/104 mm
Maximum Print Speed	ZT610: 14 ips/356 mm per second
Media Sensors	Dual media sensors: transmissive and reflective
Maximum Continuous Print Length	ZT610 203 dpi: 150″/3810 mm 300 dpi: 100″/2540 mm 600 dpi: 30″/762 m

Media Characteristics

Media Width	ZT610: 0.79″/20 mm to 4.5″/114 mm
Maximum Media Roll Size	8.0″/203 mm O.D. on a 3″/76 mm I.D. core
Thickness	0.0023″/0.058 mm to 0.010″/0.25 mm
Media Types	Continuous, die-cut, notch, black-mark

Ribbon Characteristics

Standard Length	1476’/450 m
Width	ZT610: 0.79″/20 mm to 4.33″/110 mm
Core	1.0″/25.4 mm I.D.

Operating Characteristics

Environmental

Operating Temperature:
• Thermal transfer = 40ºF to 104ºF/5ºC to 40ºC
• Direct thermal = 32ºF to 104ºF/0ºC to 40ºCOperating Humidity: 20% to 85% non-condensingStorage/Transportation Temperature: -22F to 140F/
-30C to 60CStorage Humidity: 20% to 85% non-condensing

Electrical

Auto-detectable (PFC Compliant) 90-265 VAC, 47-63Hz, rated at 250 Watts

ENERGY STAR qualified

Agency Approvals

IEC 60950, EN 55022 Class B, EN 55024, EN 61000-3-2, EN 61000-3-3

cTUVus, CE Marking, FCC-B, ICES-003, VCCI, C-Tick, NOM, S-Mark (Arg), CCC, CU, BSMI, KCC, SABS, IN-Metro

Physical Characteristics

ZT610 closed
Length	19.88″/505 mm
Width	10.56″/268.2 mm
Height	15.58″/395.68 mm
Weight	50 lbs/22.7 kg

Print DNA Software Solutions

Development Tools	With faster, easier and smarter integration of Zebra printers with your devices and applications, your Zebra printing solutions are up and running in less time, with less cost.
Management Tools	Minimize IT effort and maximize IT control with Print DNA management tools — the easy way to add and manage any number of printers, anywhere — from a handful of printers to thousands of printers all around the world.
Productivity Tools	Reach new levels of productivity with innovations that streamline tasks and workflow optimize device performance and solve tomorrow’s printing problems today.
Visibility Tools	Regardless of whether or not you have an existing Mobile Device Management solution in place, robust Visibility Tools provide unparalleled insight into printer health, usage and performance

Firmware

ZBI 2.0™ – Optional powerful programming language that lets printers run stand-alone applications, connect to peripherals and much more.
ZPL and ZPL II® – Zebra Programming Language provides sophisticated label formatting and printer control, and is compatible with all Zebra printers.
XML-enabled Printing – allows XML communications for barcode label printing.

Barcode Symbologies

Linear Barcodes: Code 11, Code 39, Code 93, Code 128 with subsets A/B/C and UCC Case Codes, ISBT-128, UPC-A, UPC-E, EAN-8, EAN-13, UPC and EAN 2- or 5-digit extensions, Plessey, Postnet, Standard 2-of-5, Industrial 2-of-5, Interleaved 2-of-5, Logmars, MSI, Codabar, Planet Code
2D Barcodes: Codablock, PDF417, Code 49, DataMatrix, MaxiCode, QR Code, TLC 39, MicroPDF, RSS-14 (and composite), Aztec

Fonts and Graphics

16 resident expandable ZPL II bitmap and two resident scalable ZPL fonts Asian and other international scalable and smooth bitmapped fonts
Unicode™: For multi-language printing
Downloadable objects include graphics, scalable and bitmap fonts, label templates and formats
IBM Code Page 850 international character sets are available in the fonts A, B, C, D, E, F, G and 0 through software control
Code Page 1250, 1252, 1253, 1254, 1255 Support with font 0
32 MB user available DRAM
512 MB user available on-board Flash

Options and Accessories

Connectivity

• Two open communication slots to add internal cards for 802.11ac, parallel, Ethernet, and applicator interface. IPv6 option is available as an external dongle attached to a parallel port

Media Handling

• Rewind: Internally rewinds a full roll of printed labels on 3″ core, or peels and rewinds liner

• Cutter: Front-mount guillotine cutter and catch tray

• Ink-side in ribbon supply spindle

RFID

• Supports tags compatible with: UHF EPC Gen 2 V2, ISO/IEC 18000-63 and RAIN RFID protocols

• Integrated RFID system is user-upgradable in the field and available on both 4″ and 6″ models

• Adaptive Encoding Technology automatically selects optimum encode settings

Display

• Brightly lit, 4.3-inch full-color touch display with clear navigation and immediate status visibility and support

Keyboard Display Unit

• ZKDU™ keyboard display units for stand-alone printing applications
