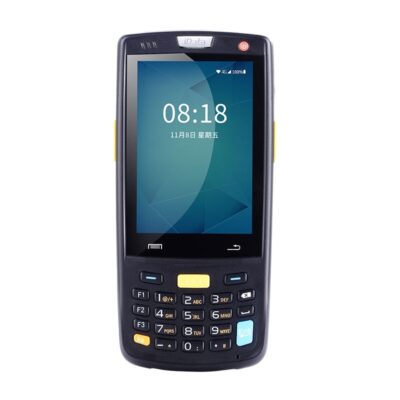

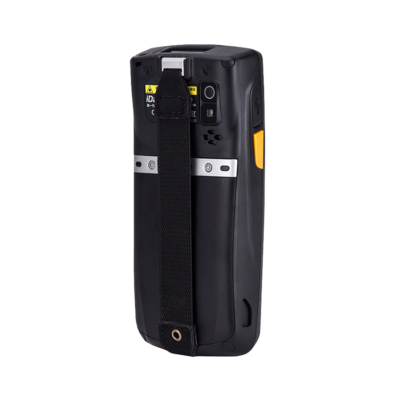

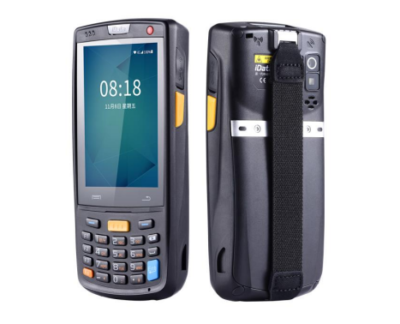

iData 95W Mobile Computer

iData 95W provides professional and outstanding automatic data identification and collection. With industry leading configuration and professional system optimization design, iData 95W provides enterprise users with stable and fast device operation, enabling them working in an efficient and easy manner anytime and anywhere.

  • OS: Android 6.0
  • CPU: Quad-core 1.3GHz
  • Memory: 16 GB + 2 GB
  • Camera(optional): 8 MP autofocus lens, LED flash
  • Connection: WIFI 4G/3G/2G & Bluetooth 4.0+LE
  • Display: 3.5-inch HD display (960×640)
  • Battery: 3.7 V 4000 mAh rechargeable lithium polymer battery (6000 mAh battery optional)
  • Includes: Battery, Power adapter, Wrist strap, Hand strap, Bottom charging cable, USB cable
Brand:
iData

S$600.00 per unit

5 in stock (can be backordered)

Request for Quote
Overview

Overview

Advanced configuration

  • Quad-core 1.3 GHz and 16GB ROM + 2GB RAM memory for higher running speed
  • High performance 650MHz ARM MALI-T720 MP2 GPU, with better screen display effect

Industrial-grade capacitive touch panel

  • Industrial-grade capacitive touch panel for easy operation and higher flexibility
  • Meeting the requirements for mobile operation in complex environments such as low temperature and field
  • Equipped with a 3.5-inch HD display screen with higher resolution (960 x 640 pixels)

Powerful data collection

  • Equipped with advanced scanning engines to read not only 1D/2D barcodes normally printed on traditional media, stained, or covered with plastic film but also barcodes displayed on mobile phones and computer screens
  • Exit window made of Corning Gorilla glass for a better scratch-resistance, a higher light transmittance, and more quick and accurate scanning
  • Equipped with built-in RFID read/write modules to quickly and accurately read RFID tags in batches

Multiple wireless communication modes

Supporting TDD-LTE/FDD-LTE/WCDMA/ GPRS/HSPA+/GSM in a wireless wide area network (WAN) and other wireless communication modes.

  • Supporting Wi-Fi transmission in a local area network (LAN)
  • Supporting NFC transmission, convenient pairing
  • Supporting Bluetooth communication
  • Supporting a high-performance GPS navigation chip for more accurate positioning.

Fast charging scheme

  • Supporting fast charging scheme for higher work efficiency
  • Adopting a 3.7V 4000 mAh rechargeable lithium polymer battery (6000 mAh battery optional) for long time mobile operation.

Applications
  • Logistics
  • Warehousing
  • Retail
  • Healthcare
  • Manufacturing
  • Utilities and Public Service
  • Others



Downloads

Brochure



Specifications

System Configuration

CPU: Quad-core 1.3GHz
Operating System: Android 6.0
Memory: 16 GB+2 GB
Expansion Slot: Micro SD card，up to 32GB
Display: 3.5-inch HD display (960×640)
Touch Panel: Industrial-grade capacitive touch panel
Camera: 8 MP autofocus lens, LED flash
Exit Window: Corning® Gorilla® glass
Keypad: Durable industrial keypad with interior transmission light
Battery: 3.7 V 4000 mAh rechargeable lithium polymer battery(6000 mAh battery optional)
Audio: Built-in microphone
Notification: Vibrator alerts/LED/Audio notification
Vibration Motor: Built-in programmable vibration motor
Sensor: G-Sensor

Structural Parameters

Dimensions (LxWxD): 152 mm×68 mm×24 mm
Weight: 255 g (standard battery included)

Communication Transmission

Wireless WAN(Network frequency): 2G：B2/B3/B5/B84G：FDD-LTE：B1/B3/B5TDD-LTE：B34/B38/B39/B40/B41
Wireless WAN(Data service): GSM/GPRS/EDGE/CDMA/UMTS/HSPA/HSPA+EVDO/WCDMA/TDSCDMA/TDD-LTE/FDD-LTE
Wireless LAN: Wi-Fi 802.11 a/b/g/n
Bluetooth: Bluetooth 4.0+LE
GPS (optional): GPS/AGPS/BEIDOU/GLONASS

Operating Environment

Development Tools: Android SDK + JDK + Eclipse
Programming Language: Java, C
Operating Temp.: -20℃ ~ 60℃(-4℉ ~ 140℉)
Storage Temp.: -40℃ ~ 60℃（-40℉ ~140℉ ）battery included-40℃ ~ 70℃（-40℉ ~158℉）battery not included
Relative Humidity: 0 to 95% (non-condensing)
Drop Specification: 1.5-meter drops to concrete ground
Sealing: IP65
Tumble Specification: 500 0.5-m tumbles (1000 hits)

1D Laser Scanner

Optical Resolution: ≥4 mil
Scan Angle: 47°± 3° (Standard)
Scan Depth of Field: 3.81 cm – 60.98 cm
Scan Speed: 104±12 /sec (Bidirectional)

1D / 2D Area Imager

Optical Resolution: ≥3 mil
Scan Angle: Omnidirectional
Scan Speed: 300 scans/sec
SupportedSymbologies: Aztec Code, Codabar, Codablock F, Code 11, Code 128 , Code 2 of 5 , Code39 , Code 93 , Data Matrix , EAN/JAN-13 , EAN/JAN 8 , EAN-UCC CompositeCodes , EAN-UCC Emulation , IATA Code 2 of 5 , Interleaved 2 of 5, Matrix2 of 5, MaxiCode, MicroPDF417 , MSI , PDF417 , Postal Codes ( AustralianPost , British Post , Canadian Post , China Post , Japanese Post , KoreaPost , Netherlands Post , Planet Code , Postnet ) , Plessey Code ,PosiCode , QR Code , RSS Expanded , RSS Limited , RSS-14 , TCIF LinkedCode 39 , Telepen , Trioptic Code, UPC-A , UPC-E, etc.

RFID

Frequency: 13.56 MHz
Reading Distance: Within 50 mm
Protocol: ISO14443A/14443B/15693
NFC: Optional

Accessories

Standard: Battery, Power adapter, Wrist strap, Hand strap, Bottom charging cable, USBcable
Optional: Charging cradle, 4-slot battery cradle, Screen protector, Carry case, Waistbag, Extended battery
