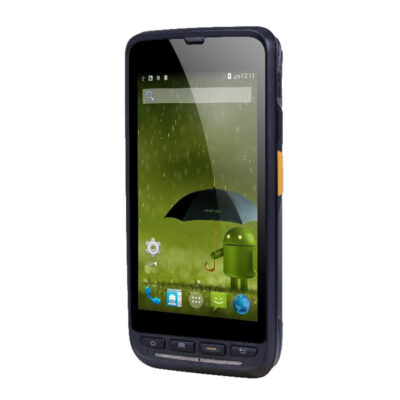

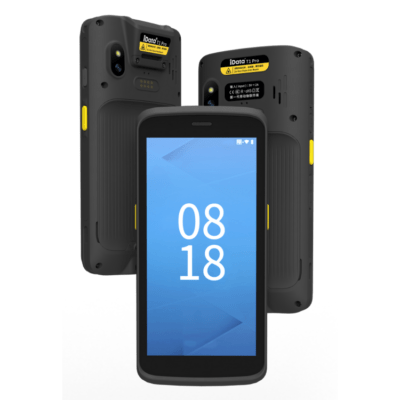

iData T1 Android Mobile Computer (1D/2D Imager)


Available on backorder

iData T1 is light but strong. The 5.5-inch full screen thin PDA that can be held in one hand with 18:9 screen design ratio, supporting multitask split screen operation, 230G easy holding feeling, zero burden to carry, and more convenient operation. It is 1.5m fall resistant, IP68 dustproof and waterproof, noise resistant, cold and heat resistant, visible under strong screen light, gloves & wet and dry hand touch.

  • OS: Android 9.0
  • Processor: Octa-core 2.0 GHz
  • Memory: 16GB+2GB,64GB+4GB(optional)
  • Camera: Rear 13 million pixel camera, front 5 million pixel camera, support PDAF
  • Display: 5.5-inch, resolution: 1440*720 pixel
  • Battery: Lithium battery 3.8V power supply, 5000mAh, non-removable
  • Barcode Scanner: Support 1D/2D scanning engine
  • Includes: USB cable, power adaptor, hand strap



S$900.00 S$988.00

Available on backorder



  • Enterprise WiFi
    Deep optimization, fast roaming, easy to handle more complex Wi-Fi scenarios.
  • Secure Identification
    Face recognition, accurate, front-loading of 5 million + rear-loading of 13 million double photo design, and accurate face recognition function.
  • Fingerprint Recognition
    It can quickly identify fingerprint and unlock, and support multiple fingerprint identification applications, fully meeting the requirements of various mobile applications of enterprises.


  • One-click Intercom PTT
    Quickly implements “one-to-one “and “one-to-many “calls.

Comprehensive upgrade

  • Enterprise-class Android OS + Octa-core CPU
    Upgraded Bluetooth 5.0 connection, faster and more stable, lower power consumption; support to connect multiple Bluetooth devices at the same time.

Basic Function, Better Performance

  • Android 10.0 OS
  • Octa 2.0Hz CPU
  • Memory optional 4BG RAM + 64GB ROM/ 2GB RAM + 16GB ROM
  • Full Netcom, dual card standby
  • BT5.0
  • NFC
  • Double camera
  • 5000mAh large battery for longer usage
  • GPS

Strong Protection

  • 1.5m fall resistant, IP68 dustproof and waterproof, noise resistant, cold and heat resistant,
    visible under strong screen light, gloves & wet and dry hand touch.







T1 System Configuration

CPU: Octa-core 2.0 GHz
Operating System: Android 9.0
Memory: 16GB+2GB,64GB+4GB(optional)
SIM: Three select two card slots, support dual card dual standby
*Three-choice two-card slot: Two cards can be placed at the same time, nano SIM card + nano SIM card/nano SIM card + TF card
Expansion Slot:: Micro SD card, up to 256 GB
Display Screen: 5.5-inch, resolution: 1440*720 pixel
Touch Screen: Industrial capacitive screen, supporting two-point touch + gesture operation
Camera: Rear 13 million pixel camera, front 5 million pixel camera, support PDAF
Flashlight: 800mA flashlight
Keyboard: 3 keys in total, side scan key*2, side power key*1
Battery: “Lithium battery 3.8V power supply, 5000mAh, non-removable
*Executive standard: GB31241-2014”
Audio: Built-in dual microphones (noise reduction microphone)
Charging: Type-C charging and pin port charging, 10W fast charging
Prompts: Vibration reminder/LED reminder/audio reminder
Fingerprint Recognition: Supporting
Vibrating Motor: Built-in vibrating motor
Sensor: Gravity sensor (G-sensor) / proximity sensor / light sensor
Intercom Function (Optional): Supporting one-button PTT calls

Structural Parameters

Dimensions (LxWxD): 157mm*74mm*13.6mm
Weight: 230g(Within battery)

Communication Transmission

Wireless WAN
(Network frequency):
Wireless WAN
(Data service):
Wireless LAN: Wi-Fi 802.11a/b/g/n/r/ac(2.4G+5G dual-band Wi-Fi) ,Wi-Fi 5G PA
Bluetooth: Bluetooth 5.0+BLE
GPS (optional): GPS/AGPS/Beidou/Galileo/GLONASS/QZSS

Operating Environment

Working Temperature: -20℃~60℃
*For your safety, please do not charge in a low temperature environment
Strong Temperature: -40℃~70℃(Without battery)
Humidity.: 0%~95% (no condensation)
Drop Specification: 1.5m concrete floor dropped several times
Roller Drop Specification: 500 times of roller drops from a height of 1 meters
Protection Level: IP68
Sealing: IP65
Electrostatic Protection: ±15KV (air discharge), ±8KV (contact discharge)

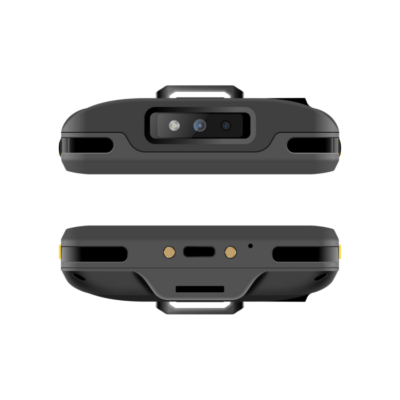

Scan Engine

Barcode: Support 1D/2D scanning engine
Scanning Accuracy: ≥3.33mil
Scanning Angle: Tilt ±60°, deflection ±60°, rotation 360°
Angular Field of View: Horizontal: 44.3°; Vertical: 28.4°; Diagonal: 51°
Ambient Light: Sunlight: 10,000ft. Candles (107,640Lux)
Artificial Light: 450ft. Candles (4,844Lux)
Motion Tolerance: 8m/s

NFC (Optional)

Frequency: 13.56MHz
Reading Distance: Within 30mm
Protocol: ISO14443A/14443B/15693

Input/Output Ports

USB Interface: Type-C (with earphone function) *1
OTG: Supporting

Development Support

Development Language: Java
API: iScan API (Scan Development Kit), Device API (Device Management/Configuration Development Kit), Android standard interface
Development Tool: Eclipse/Android Studio


Standard: USB cable*1, power adaptor*1, hand strap*1
Optional: single cradle,device 4-slot charging cradle
