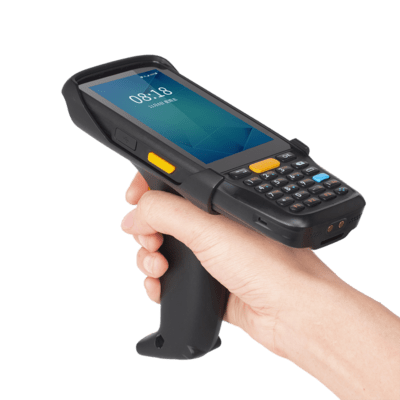

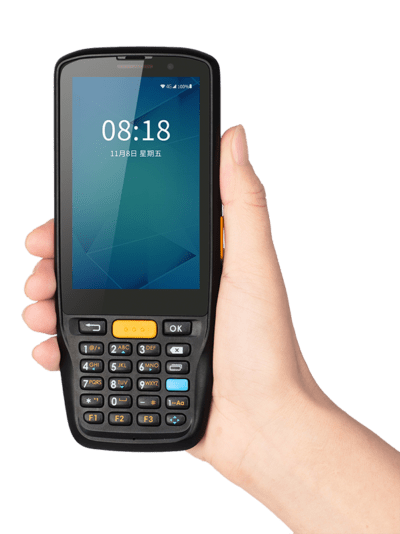

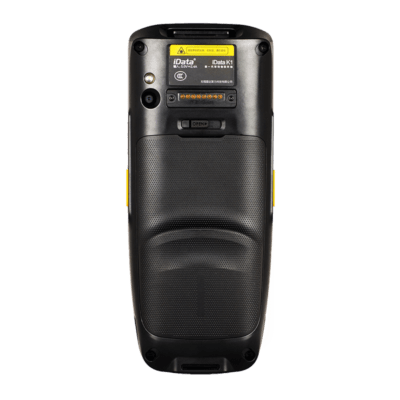

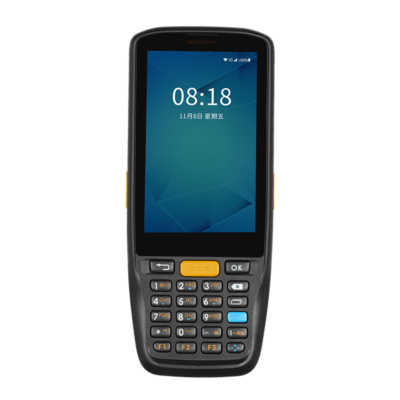

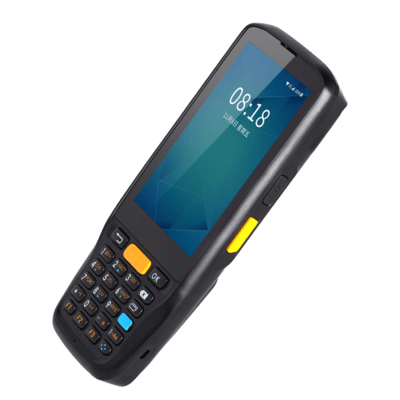

iData K1S Mobile Computer

iData K1 is an industrial mobile computer with keyboard, suitable for various data collection and transmission operations. iData K1 can accomplish your daily tasks with the power of a octa-core processor and Android OS, with high quality and speedy 1D/2D barcode scanner.

  • OS: Android 9.0
  • CPU: Octa-Core 2.0 Ghz
  • Memory: 16GB ROM + 2GB RAM
  • Connection: WIFI, 4G/3G/2G & Bluetooth 4.0
  • Display: 4 inch, 800 x 480
  • Camera: 8MP
  • Battery: 3.8V 4400 mAh Rechargeable Battery
  • Barcode Scanner: 2D Area imager
Brand:
iData

S$728.00 per unit

1 in stock

Request Quote
SKU: IDATA-K1S Categories: , ,
Overview

Overview

Ergonomic design with comfortable grip

  • 4-inch screen + IMD Wear-resistant keyboard, ergonomic design, comfortable grip and operation.

Good performance of data collection, extremely comprehensive; Smooth system operating experience and customization

  • Octa-core 1.8GHz CPU with high performance; Comprehensive data collection configuration, fulfill all requirements.
  • Latest Android OS, fast and smooth operating experience; easy to customize.

Stable Wi-Fi transmission & coverage for all environments

  • 2.4G + 5G dual frequency Wi-Fi switch, data transmission stable.
  • 5G PA amplifier, quick switching network, fast data transmission.

Long battery life, fast charging

  • 4400mAh battery + unique batter saving technology.
  • Fast battery charging, overload protection.

Portable & durable

  • Device only weighs 270g, thin as 26mm，portable and comfortable for long-time usage.
  • IP65 protection+1.5m cement floor anti-drop, easy to handle under all kinds of environment.

Applications
  • Logistics
  • Warehousing
  • Retail
  • Healthcare
  • Manufacturing
  • Utilities and Public Service
  • Others



Downloads

Brochure



Specifications

System Configuration

CPU： K1：Octa-core 1.8 GHzK1S: Octa-core 2.0 GHz
Operating System： K1: Android 8.1K1S: Android 9.0
Memory： K1: 64GB ROM + 4GB RAM (optional 32GB ROM + 3GB RAM/16GB ROM + 2GB RAM)K1S: 128GB ROM+6GB RAM (optional 64GB ROM + 4GB RAM/32GB ROM + 3GB RAM/16GB ROM + 2GB RAM)
Expansion Slot： K1: Micro SD card, up to 128 GBK1S: Micro SD card, up to 256 GB
Display： 4 inch, 800*480 IPS
Touch Panel： Industrial-grade capacitive panel (supporting operation with gloves)
Camera： K1: 13 MXP autofocus camera in the back side, autofocus lens, LED flash, supporting PDAF, Highlight flashK1S: 8MXP（optional 13MXP）autofocus camera in the back side, autofocus lens, LED flash, supporting PDAF, Highlight flash
Flash light： 800mA
Keyboard light： White
Exit window： Mitsubishi composite plate
Keypad： 26 durable industrial keypads with interior transmission light
Battery： K1: 3.8 V 4400mAh rechargeable lithium polymer battery, QC3.0 quick chargingK1S: 3.8 V 4400mAh rechargeable lithium polymer battery
Audio： Built-in microphone
Notification： Scanning prompt LED/ Charging prompt LED/ Vibrator alerts
Vibration Motor： Built-in programmable vibration motor

Structural Parameters

Dimension (LxWxD)： 168mm x 71mm x 26mm
Weight： 270g (battery included)

Communication Transmission

Wireless WAN(Network frequency)： K1：Asia & Europe2G：B2/B3/B5/B83G：WCDMA：B1/B2/B5/B8CDMA&EVDO：BC0TD-SCDMA:B34/B394G：FDD-LTE：B1/B3/B5/B7/B8/B20TDD-LTE：B38/B39/B40/B41K1S：Asia & Europe2G：B2/B3/B5/B83G：WCDMA：B1/B5/B8CDMA&EVDO：BC0TD-SCDMA:B34/B394G：FDD-LTE：B1/B3/B5/B7/B8/B20TDD-LTE：B34/B38/B39/B40/B41K1S：America2G：B2/B3/B53G：B1/B2/B4/B5CDMA&EVDO：BC0/BC1 (America)4G：B1/B2/B3/B4/B5/B7/B12/B17/B28A/B28B/B41
Wireless WAN(Data service)： GSM/GPRS/EDGE/CDMA/UMTS/HSPA/HSPA+/EVDO/WCDMA/TD-SCDMA/TDD-LTE/FDD-LTE
Wireless LAN： Wi-Fi 802.11a/b/g/n/r/ac（Dual-band Wi-Fi: 2.4G+5G）WiFi 5G PA amplifier
Bluetooth： K1: Bluetooth 4.2 LEK1S: Bluetooth 5.0 LE
GPS： GPS/AGPS/Glonass/GALILEO/BEIDOUTarget SNR≥39dB（Signal level -130dBm）
Sensor： G-Sensor, proximity sensor, light sensor, geomagnetic, gyroscope

Operating Environment

Development Tools： Android SDK + JDK + Eclipse
Programming Language： Java
Operating Temp.： -20℃ ~ 60℃(-4℉ ~ 140℉)
Storage Temp.： -40℃ ~ 60℃（-40℉ ~140℉ ）battery included-40℃ ~ 70℃（-40℉ ~158℉）battery not included
Relative Humidity： 0 ～ 95% (non-condensing)
Drop Specification： 1.5-meter drops to concrete ground
Sealing： IP65
Electrostatic Discharge： Conforms to ±15 kV air discharge, ±8 kV direct discharge; Surge prevention design

1D Laser Scanner

Optical Resolution： ≥4 mil
Scan Depth of Field： 3.81 cm – 60.98 cm
Scan Angle： 47°±3°(Standard)
Scan Speed： 102±12 scans/sec. (Bidirectional)

1D / 2D Area Imager

Optical Resolution： ≥3 mil
Scan Angle： Omnidirectional
Scan Speed： 300 scans/sec.
Supported Symbologies： Aztec Code, Codabar, Codablock F, Code 11, Code 128, Code 2 of 5, Code 39, Code 93, Data Matrix, EAN/JAN-13, EAN/JAN 8, EAN-UCC Composite Codes, EAN-UCC Emulation, IATA Code 2 of 5, Interleaved 2 of 5, Matrix 2 of 5, MaxiCode, MicroPDF417, MSI, PDF417, Postal Codes ( Australian Post, British Post, Canadian Post, China Post, Japanese Post, Korea Post, Netherlands Post, Planet Code, Postnet ), Plessey Code, PosiCode, QR Code, RSS Expanded, RSS Limited, RSS-14, TCIF Linked Code 39, Telepen, Trioptic Code, UPC-A, UPC-E, etc.

NFC(Optional)

Frequency： 13.56 MHz
Reading Distance： Within 30 mm
Protocol： ISO14443A/14443B/15693

Input/output Ports

USB Port： 1 (2pin Charger Port)
Charger Port： K1: Type-C, headphone, transmission speed USB 3.0K1S：Type-C, headphone, transmission speed USB 2.0
OTG： Support

Accessories

Standard： Battery, Power adapter, Wrist strap, Hand Strap
Optional： Bottom charging cable, USB cable, Single cradle, 4-slot battery cradle, Pistol grip, Carry case, Waist bag , Screen protector
Video

Request Demo
Reviews (0)

Reviews

There are no reviews yet

Only logged in customers who have purchased this product may leave a review.

You may also like…

In Stock

iData T1 Android Mobile Computer (1D/2D Imager)

iData
S$650.00 per unit
iData T1 is light but strong. The 5.5-inch full screen thin PDA that can be held in one hand with 18:9 screen design ratio, supporting multitask split screen operation, 230G easy holding feeling, zero burden to carry, and more convenient operation. It is 1.5m fall resistant, IP68 dustproof and waterproof, noise resistant, cold and heat resistant, visible under strong screen light, gloves & wet and dry hand touch.
  • OS: Android 9.0
  • Processor: Octa-core 2.0 GHz
  • Memory: 16GB+2GB，64GB+4GB(optional）
  • Camera: Rear 13 million pixel camera, front 5 million pixel camera, support PDAF
  • Display: 5.5-inch, resolution: 1440*720 pixel
  • Battery: Lithium battery 3.8V power supply, 5000mAh, non-removable
  • Barcode Scanner: Support 1D/2D scanning engine
  • Includes: USB cable, power adaptor, hand strap

Add to wishlist
Add to cart
Quick view

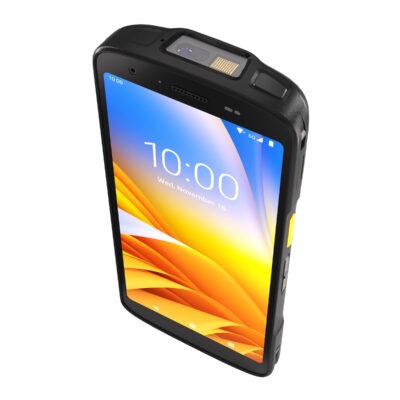

Zebra TC26 Mobile Computer
